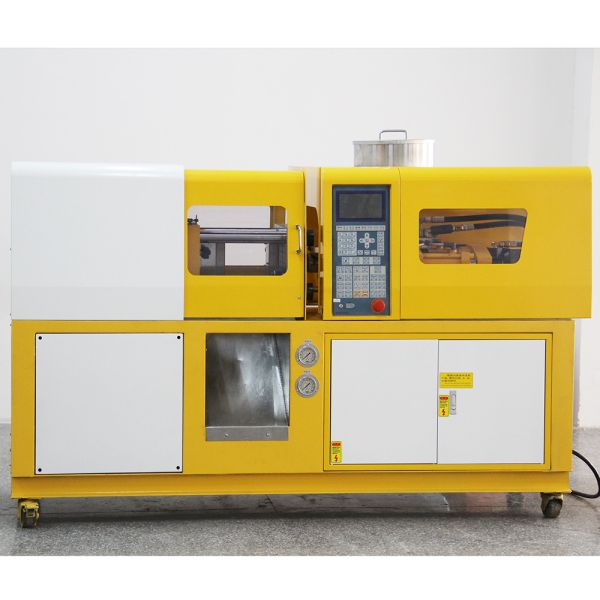

Precision Small Injection Molding Machine with Servo System

Name: Precision Small Injection Molding Machine with Servo System
Brand: didaINT
Price: 10000 USD

Wholesale Precision Small Injection Molding Machine with Servo System from china suppliers

Brand Name : didaINT

Model Number : EL-436

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : 10000

Payment Terms : D/P,T/T,Western Union

Supply Ability : 100unit/month

Delivery Time : 3-7days

Packaging Details : wooden package

Dimension : 2020×600×1400

Model : 20T, 25T,40T, 60T

Warranty : 1 year

Injection Pressure : 2170 Kg/cm2

Clamping Force : Varies depending on model

Style : Horizontal

After-Sales Service Provided : Engineers available to service machinery overseas

Opening Stroke : 250 mm

Machine Weight : 2000kg

Contact Now

Precision Small Injection Molding Machine with Servo System

This EL-436 series mini injection molding machine is ideal for producing small, high-precision plastic components, especially suited for food-related products such as custom utensils, containers, caps, and miniature parts. It serves industries requiring clean, efficient, and repeatable micro-molding solutions.

Features

Servo System: Ensures fast, smooth, and energy-efficient operation.
Automatic Ejection & Forming: Reduces manual intervention and increases productivity.
Low Machine Height: Easy feeding, maintenance, and flexible installation.
Wide Material Compatibility: Works with PP, PC, ABS, PE, PA6, PS, PEI, PMMA, POM, TPU, TPE, and more.
Precision Control: Excellent repeatability for consistent output quality.

Specifications Table

Specification Category	Details	20T	25T	40T	60T
Injection Unit
Screw Diameter (mm)	mm	22	22	25	28
Injection Pressure (kg/cm²)	kg/cm²	2170	2170	1960	2170
Injection Quantity (g/oz)	g/oz	40/1.4	40/1.4	64/2.2	80/2.8
Screw Stroke (mm)	mm	110	110	110	140
Nozzle Stroke (mm)	mm	150	150	200	200
Clamp Unit
Clamping Force (Tons)	Tons	20	25	40	60
Platen Size (mm)	mm	380x290	380x290	430x430	470x470
Tie-Bars Spacing (mm)	mm	250x200	250x200	280x280	310x310
Min Mold Thickness (mm)	mm	100/40	130/100	120/160	160/200
Mold Opening Stroke (mm)	mm	215	215	215	250
Max Mold Opening Distance (mm)	mm	255/315	315/345	340/380	410/450
Power Unit
Max Hydraulic Pressure (kg/cm²)	kg/cm²	140	140	140	140
Motor Power (KW)	KW	4	4	4	7.5
Total Power Consumption (KW)	KW	6	6	6.4	11.5
Other
Machine Weight (kg)	kg	1000	1000	1500	2000
Machine Dimensions (mm)	mm		2020x600x1400	2400x700x1500	2600x700x1500

Factory presentation

Precision Small Injection Molding Machine with Servo System

FAQ

What materials can the XH-436 mini injection molding machine process?
It supports a wide range of thermoplastics, including PP, PC, ABS, PE, PA6, PS, PEI, PMMA, POM, TPU, and TPE.
Is this machine suitable for food-grade product manufacturing?
Yes, the XH-436 series is designed to produce small, precision parts suitable for food-related applications, provided compatible food-grade materials are used.
How energy-efficient is the servo system?
The servo system offers super energy-saving performance, reducing power consumption while maintaining fast and stable operation.
What is the maximum clamping force available?
The XH-436 series offers models with clamping forces from 20T to 60T to suit different production needs.
Does the machine support automatic product ejection?
Yes, it features automatic product dropping and forming, minimizing manual handling and improving efficiency.
